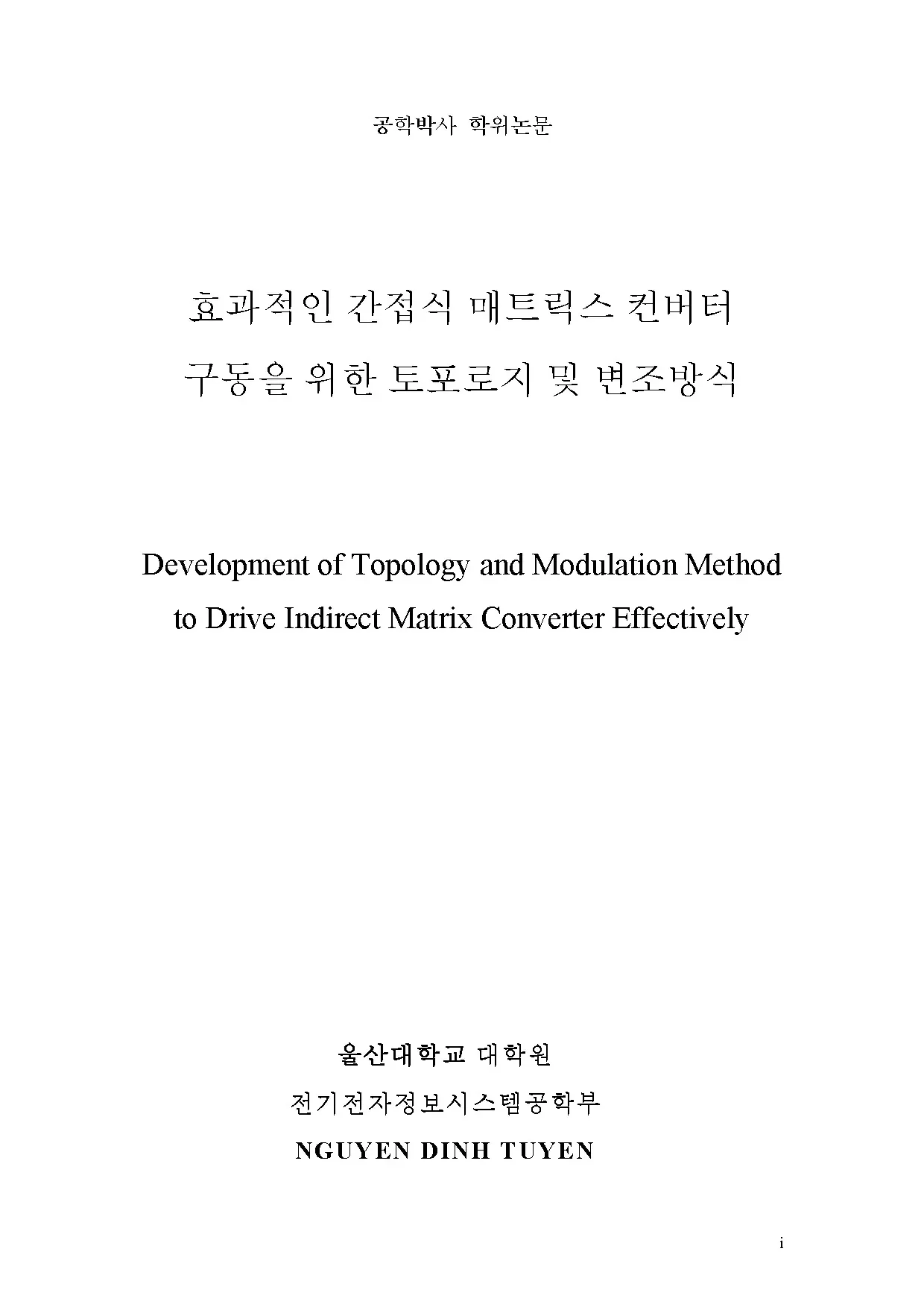

Development of Topology and Modulation Method to Drive Indirect Matrix Converter Effectively NGUYEN DINH TUYEN i Development of Topology and Modulation Method to Drive Indirect Matrix Converter Effectively 2012 12 NGUYEN DINH TUYEN ii iii UNIVERSITY OF ULSAN Development of Topology and Modulation Method to Drive Indirect Matrix Converter Effectively by NGUYEN DINH TUYEN A thesis submitted in partial fulfillment for the degree of Doctor of Philosophy in the School of Electrical Engineering University of Ulsan iv v Abstract In recent years, the matrix converter (MC) has become more attractive because of the evolution of power device technologies and the development of large power integrated circuits. The MC is device used for converting directly from ac power to ac power without the intermediate energy storage component. The MC has some advantages such as high quality input/output current waveforms, controllable input power factor, operations in all four quadrants of the torque-speed and long life-time due to the absence of bulky electrolytic capacitors. Due to the provided significant advantages, it has been received extensive research attention for being alternative to replace traditional ac-dc-ac converters in real applications such as adjustable speed motor drive, renewable energy, power supply and many others.
The MC topologies are classified into two kinds: the direct matrix converter (DMC) and the indirect matrix converter (IMC). The IMC and DMC are similar in term of number of power switches and input/output current performance. In the last decade, the IMC has been received more attention than the DMC due to the IMC has some advantages that are not available in the DMC. This thesis concentrates on the development the modulation technique and topology of the IMC in order to control it effectively.
In this study, three new space vector modulation (SVM) methods are first proposed for IMC control. The modulation strategies are developed to reduce common-mode voltage. The comparison of three proposed modulation methods and the conventional method are carried out in term of: the peak value of common-mode voltage, the output voltage qualities and the possibility of voltage transfer ratio. The comparison results are confirmed both in the simulations and in the experimental tests.
vi In addition to developing new SVM methods for common-mode voltage reduction, this thesis establishes the carrier-based pulse width modulation (CBPWM) for the IMC. The SVM is flexible and widely used in industrial practice. However, it needs complex calculations and tables to synthesize the reference input current and the reference output voltage. A CBPWM scheme for the IMC is developed in order to overcome the drawbacks of the SVM method.
The advantage of the proposed algorithm is its ability use only one symmetrical triangular carrier signal to generate the gate signals for all of the power switches in both the rectifier and the inverter stages. The sinusoidal input and output currents, the maximum voltage transfer ratio at 0.866 are obtained with the proposed CBPWM method. Beside the study on the modulation method for the IMC, the development of the IMC topology is also concerned. In this research, a new IMC topology is proposed in order to supply dual three-phase loads.
The proposed converter is an emerging topology that integrates the five-leg inverter into the conventional three-phase to three-phase IMC topology. The CBPWM method suitable for the proposed IMC topology is also introduced. Simulation and experimental results are shown that the proposed converter can provide high quality input and output waveforms. vii To my parents: Nguyen Dinh To, Tran Thi Kim Bien To my beloved wife: Tran Thi Phuong Thao and to my sister and my brother: Nguyen Dinh Kim Giao, Nguyen Dinh Tuan viii Acknowledgements This work was carried out in Industrial Network and Power Electronics Laboratory (INPEL) at School of Electrical Engineering, University of Ulsan during the year 2007-2012.
This research was support by research fund of University of Ulsan and Network-based Automation Research Center (NARC). First of all, I would like to thank my supervisor, Professor Hong-Hee Lee, director of NARC at the University of Ulsan for his technical suggestions and invaluable support during of the course of my research. I express my sincere appreciation to the other members of committee: Professor Tae-Won Chun (University of Ulsan), Professor Heung-Geun Kim (Kyungpook Nat’l University), Professor Jin Hur (University of Ulsan) and Professor Jang-Mok Kim (Busan Nat’l University) for their valuable time, engagement and support. I am also thankful to all Professors in School of Electrical Engineering, University of Ulsan for their support and giving me knowledge.
In addition, I thank all members in INPEL for their friendship and providing the necessary help, both theoretical and practical, to carry out this research. I express my grateful for the personal grants from Brain Korea 21 Program and NARC. The financial support and metal assistant provided their grants have been of crucial important to me. Finally, I would like to thank my family and my dear wife for their infinite patience, support and love.
