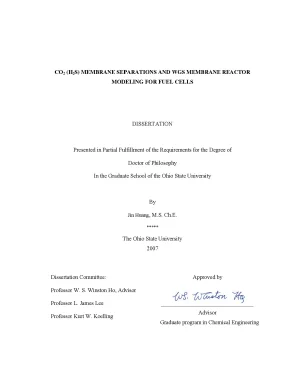

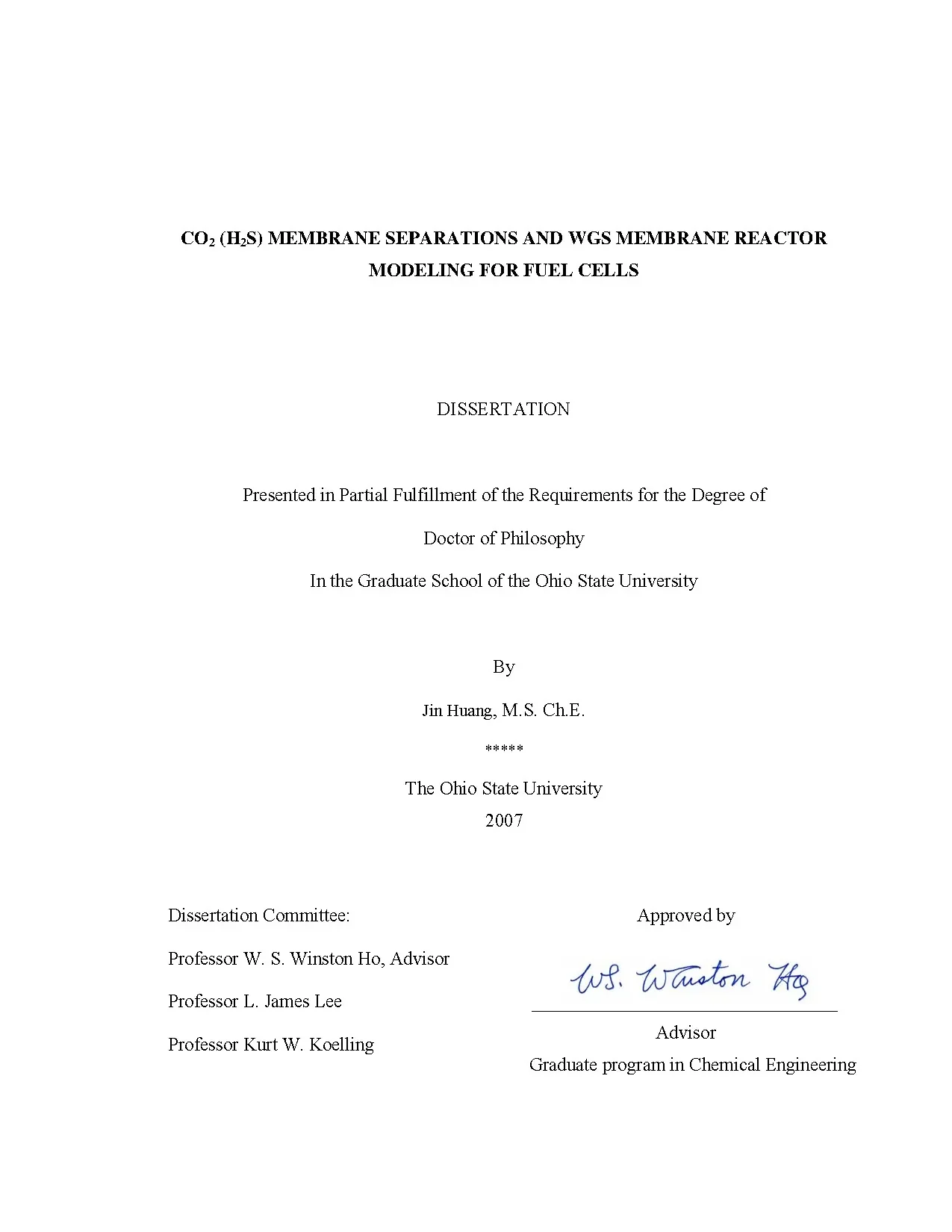

CO2 (H2S) MEMBRANE SEPARATIONS AND WGS MEMBRANE REACTOR MODELING FOR FUEL CELLS DISSERTATION Presented in Partial Fulfillment of the Requirements for the Degree of Doctor of Philosophy In the Graduate School of the Ohio State University By Jin Huang, M. ***** The Ohio State University 2007 Dissertation Committee: Approved by Professor W. Winston Ho, Advisor Professor L. James Lee _____________________________________________________________________________ _ Advisor Professor Kurt W.
Koelling Graduate program in Chemical Engineering UMI Number: 3241691 UMI Microform 3241691 Copyright 2007 by ProQuest Information and Learning Company. All rights reserved. This microform edition is protected against unauthorized copying under Title 17, United States Code. ProQuest Information and Learning Company 300 North Zeeb Road P.
Box 1346 Ann Arbor, MI 48106-1346 ABSTRACT Acid-gas removal is of great importance in many environmental or energy-related processes. Compared to current commercial technologies, membrane-based CO2 and H2S capture has the advantages of low energy consumption, low weight and space requirement, simplicity of installation / operation, and high process flexibility. However, the large-scale application of the membrane separation technology is limited by the relatively low transport properties. In this study, CO2 (H2S)-selective polymeric membranes with high permeability and high selectivity have been studied based on the facilitated transport mechanism.
The membrane showed facilitated effect for both CO2 and H2S. A CO2 permeability of above 2000 Barrers, a CO2/H2 selectivity of greater than 40, and a CO2/N2 selectivity of greater than 200 at 100 – 150oC were observed. As a result of higher reaction rate and smaller diffusing compound, the H2S permeability and H2S/H2 selectivity were about three times higher than those properties for CO2. The novel CO2-selective membrane has been applied to capture CO2 from flue gas and natural gas.
In the CO2 capture experiments from a gas mixture with N2 and H2, a permeate CO2 dry concentration of greater than 98% was obtained by using steam as the sweep gas. In CO2/CH4 separation, decent CO2 transport properties were obtained with a feed pressure up to 500 psia. With the thin-film composite membrane structure, significant increase on the CO2 flux was achieved with the decrease of the selective layer thickness. ii With the continuous removal of CO2, CO2-selective water-gas-shift (WGS) membrane reactor is a promising approach to enhance CO conversion and increase the purity of H2 at process pressure under relatively low temperature.
The simultaneous reaction and transport process in the countercurrent WGS membrane reactor was simulated by using a one-dimensional non-isothermal model. The modeling results show that a CO concentration of less than 10 ppm and a H2 recovery of greater than 97% are achievable from reforming syngases. In an experimental study, the reversible WGS was shifted forward by removing CO2 so that the CO concentration was significantly decreased to less than 10 ppm. The modeling results agreed well with the experimental data.
iii Dedicated to my parents, my brother and Yujun for their love and support iv ACKNOWLEDGMENTS I would like to thank the following people for their help and support in conducting this research: • Dr. Winston Ho, my advisor at Ohio State, for his thoughtful guidance, enthusiastic discussion and continuous support and encouragement throughout the five years I have been in the United States. His persistence in pursuing the truth and his hard-working attitude have been, and will be, inspiring my career and life in the past and in the future. James Lee, Dr.
David Tomasko, and Dr. Barbara Wyslouzil for all their constructive critiques which helped me to improve my work. • I thank all my colleagues in Dr. Ho’s group: He Bai, Philip Chang, Bishnupada Mandal, Michael Vilt, Chi Yen, Jian Zou, and fellow students in Koffolt Labs who have to remain unnamed here.
Also I would like to thank the following people: • My friends, both in US and China, for all their encouragements and friendship. • My parents and my brother for their support and love throughout my studies over the years. v • Yujun for her support, encouragements, patience, and love while writing this thesis. vi VITA April 19, 1977.Born in Jianli, Hubei, China 1996.
Organic Chemical Technology, Wuhan Institute of Chemical Technology, Wuhan, China 1999. Chemical Engineering, East China Univ. of Science & Technology, Shanghai, China 2001 – 2002 .Graduate Research Associate, University of Kentucky, Lexington, KY, USA 2002 – 2006.Graduate Research Associate, The Ohio State University, Columbus, OH, USA PUBLICATIONS 1. Jin Huang, Louei El-Azzami, and W.
Winston Ho, “Modeling of CO2-selective Water- Gas-Shift Membrane Reactor for Fuel Cell,” J. Jian Zou, Jin Huang, and W. Winston Ho, “CO2-Selective Water gas shift Membrane Reactors for Fuel Cell Hydrogen Processing,” accepted by Ind. Ruofei Zhao, Jin Huang, Bin Sun, and Gance Dai, “A Study of Mechanical Properties of Mica Filled Polypropylene Based GMT Composites,” J.
Hui-ling Lu, Jin Huang, and Gance Dai, “Effects of Processing Parameters on Melt Impregnation of GMT Sheets,” J. East China Univ. Ming Li, Jin Huang, and Gance Dai, “Melt Flow through Glass Fiber Mat during GMT Melt Impregnation,” Acta Materiae Compositae Sinica, 17(3), pp. FIELDS OF STUDY Major Field: Chemical Engineering viii TABLE OF CONTENTS Abstract……………………………………………….vii List of Tables………………………….xiii List of Figures………………………………………………………………….xiv List of Notations……………………………………………………………….1 Membrane Separation Technology…………….2 Acid-gas Removal…………….3 Scope and Objectives of Research……………………………………………….
