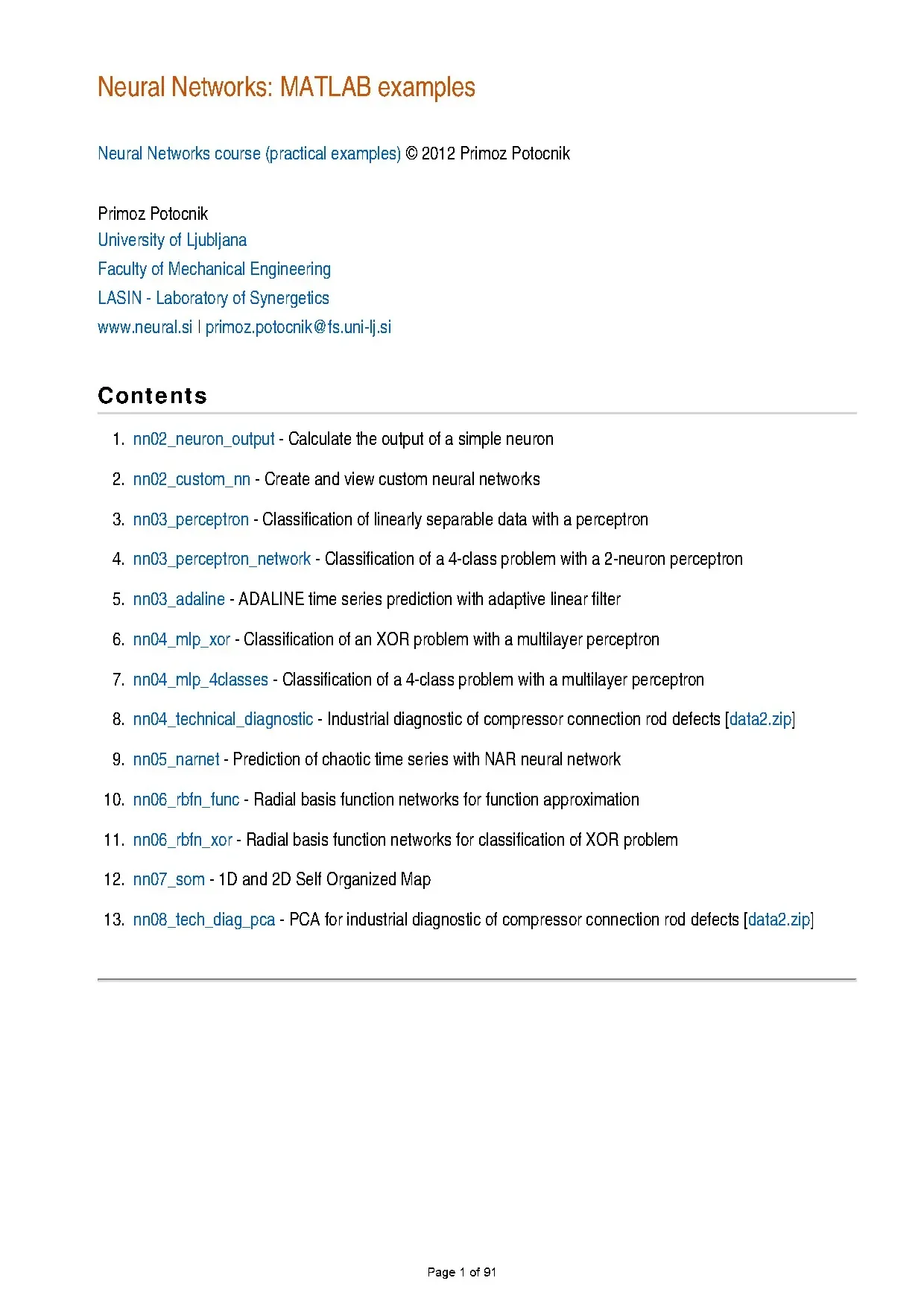

Neural Networks: MATLAB examples Neural Networks course (practical examples) © 2012 Primoz Potocnik Primoz Potocnik University of Ljubljana Faculty of Mechanical Engineering LASIN - Laboratory of Synergetics www. nn02_neuron_output - Calculate the output of a simple neuron 2. nn02_custom_nn - Create and view custom neural networks 3. nn03_perceptron - Classification of linearly separable data with a perceptron 4.
nn03_perceptron_network - Classification of a 4-class problem with a 2-neuron perceptron 5. nn03_adaline - ADALINE time series prediction with adaptive linear filter 6. nn04_mlp_xor - Classification of an XOR problem with a multilayer perceptron 7. nn04_mlp_4classes - Classification of a 4-class problem with a multilayer perceptron 8.
nn04_technical_diagnostic - Industrial diagnostic of compressor connection rod defects [data2. nn05_narnet - Prediction of chaotic time series with NAR neural network 10. nn06_rbfn_func - Radial basis function networks for function approximation 11. nn06_rbfn_xor - Radial basis function networks for classification of XOR problem 12.
nn07_som - 1D and 2D Self Organized Map 13. nn08_tech_diag_pca - PCA for industrial diagnostic of compressor connection rod defects [data2.zip] Page 1 of 91 Neuron output Neural Networks course (practical examples) © 2012 Primoz Potocnik PROBLEM DESCRIPTION: Calculate the output of a simple neuron Contents ● Define neuron parameters ● Define input vector ● Calculate neuron output ● Plot neuron output over the range of inputs Define neuron parameters close all, clear all, clc, format compact % Neuron weights w = [4 -2] % Neuron bias b = -3 % Activation function func = 'tansig' % func = 'purelin' % func = 'hardlim' % func = 'logsig' w = 4 -2 b = -3 func = tansig Define input vector p = [2 3] p = 2 3 Calculate neuron output activation_potential = p*w'+b Page 2 of 91 neuron_output = feval(func, activation_potential) activation_potential = -1 neuron_output = -0.7616 Plot neuron output over the range of inputs [p1,p2] = meshgrid(-10:.25:10); z = feval(func, [p1(:) p2(:)]*w'+b ); z = reshape(z,length(p1),length(p2)); plot3(p1,p2,z) grid on xlabel('Input 1') ylabel('Input 2') zlabel('Neuron output') Published with MATLAB® 7.14 Page 3 of 91 Custom networks Neural Networks course (practical examples) © 2012 Primoz Potocnik PROBLEM DESCRIPTION: Create and view custom neural networks Contents ● Define one sample: inputs and outputs ● Define and custom network ● Define topology and transfer function ● Configure network ● Train net and calculate neuron output Define one sample: inputs and outputs close all, clear all, clc, format compact inputs = [1:6]' % input vector (6-dimensional pattern) outputs = [1 2]' % corresponding target output vector inputs = 1 2 3 4 5 6 outputs = 1 2 Define and custom network % create network net = network(. % numInputs, number of inputs, 2,. % numLayers, number of layers [1; 0],.
% biasConnect, numLayers-by-1 Boolean vector, [1; 0],. % inputConnect, numLayers-by-numInputs Boolean matrix, [0 0; 1 0],. % layerConnect, numLayers-by-numLayers Boolean matrix [0 1]. % outputConnect, 1-by-numLayers Boolean vector ); % View network structure view(net); Page 4 of 91 Define topology and transfer function % number of hidden layer neurons net.size = 5; % hidden layer transfer function net.transferFcn = 'logsig'; view(net); Configure network net = configure(net,inputs,outputs); view(net); Train net and calculate neuron output Page 5 of 91 % initial network response without training initial_output = net(inputs) % network training net.trainFcn = 'trainlm'; net.performFcn = 'mse'; net = train(net,inputs,outputs); % network response after training final_output = net(inputs) initial_output = 0 0 final_output = 1.0000 Published with MATLAB® 7.14 Page 6 of 91 Classification of linearly separable data with a perceptron Neural Networks course (practical examples) © 2012 Primoz Potocnik PROBLEM DESCRIPTION: Two clusters of data, belonging to two classes, are defined in a 2-dimensional input space.
Classes are linearly separable. The task is to construct a Perceptron for the classification of data. Contents ● Define input and output data ● Create and train perceptron ● Plot decision boundary Define input and output data close all, clear all, clc, format compact % number of samples of each class N = 20; % define inputs and outputs offset = 5; % offset for second class x = [randn(2,N) randn(2,N)+offset]; % inputs y = [zeros(1,N) ones(1,N)]; % outputs % Plot input samples with PLOTPV (Plot perceptron input/target vectors) figure(1) plotpv(x,y); Page 7 of 91 Create and train perceptron net = perceptron; net = train(net,x,y); view(net); Plot decision boundary figure(1) plotpc(net.b{1}); Page 8 of 91 Published with MATLAB® 7.14 Page 9 of 91 Classification of a 4-class problem with a perceptron Neural Networks course (practical examples) © 2012 Primoz Potocnik PROBLEM DESCRIPTION: Perceptron network with 2-inputs and 2-outputs is trained to classify input vectors into 4 categories Contents ● Define data ● Prepare inputs & outputs for perceptron training ● Create a perceptron ● Train a perceptron ● How to use trained perceptron Define data close all, clear all, clc, format compact % number of samples of each class K = 30; % define classes q = .6; % offset of classes A = [rand(1,K)-q; rand(1,K)+q]; B = [rand(1,K)+q; rand(1,K)+q]; C = [rand(1,K)+q; rand(1,K)-q]; D = [rand(1,K)-q; rand(1,K)-q]; % plot classes plot(A(1,:),A(2,:),'bs') hold on grid on plot(B(1,:),B(2,:),'r+') plot(C(1,:),C(2,:),'go') plot(D(1,:),D(2,:),'m*') % text labels for classes text(.5-2*q,'Class D') % define output coding for classes a = [0 1]'; b = [1 1]'; c = [1 0]'; d = [0 0]'; % % Why this coding doesn't work? % a = [0 0]'; % b = [1 1]'; % d = [0 1]'; Page 10 of 91 % c = [1 0]'; % % Why this coding doesn't work? % a = [0 1]'; % b = [1 1]'; % d = [1 0]'; % c = [0 1]'; Prepare inputs & outputs for perceptron training % define inputs (combine samples from all four classes) P = [A B C D]; % define targets T = [repmat(a,1,length(A)) repmat(b,1,length(B)). repmat(c,1,length(C)) repmat(d,1,length(D)) ]; %plotpv(P,T); Create a perceptron net = perceptron; Train a perceptron ADAPT returns a new network object that performs as a better classifier, the network output, and the error.
This loop allows the network to adapt for xx passes, plots the classification line, and continues until the error is zero. Page 11 of 91 E = 1; net.passes = 1; linehandle = plotpc(net.b{1}); n = 0; while (sse(E) & n<1000) n = n+1; [net,Y,E] = adapt(net,P,T); linehandle = plotpc(net.b{1},linehandle); drawnow; end % show perceptron structure view(net); Page 12 of 91 How to use trained perceptron % For example, classify an input vector of [0.2000 y = 1 1 Published with MATLAB® 7.14 Page 13 of 91 ADALINE time series prediction Neural Networks course (practical examples) © 2012 Primoz Potocnik PROBLEM DESCRIPTION: Construct an ADALINE for adaptive prediction of time series based on past time series data Contents ● Define input and output data ● Prepare data for neural network toolbox ● Define ADALINE neural network ● Adaptive learning of the ADALINE ● Plot results Define input and output data close all, clear all, clc, format compact % define segments of time vector dt = 0.01; % time step [seconds] t1 = 0 : dt : 3; % first time vector [seconds] t2 = 3+dt : dt : 6; % second time vector [seconds] t = [t1 t2]; % complete time vector [seconds] % define signal y = [sin(4.3*pi*t2)]; % plot signal plot(t,y,'.-') xlabel('Time [sec]'); ylabel('Target Signal'); grid on ylim([-1.2]) Page 14 of 91 Prepare data for neural network toolbox % There are two basic types of input vectors: those that occur concurrently % (at the same time, or in no particular time sequence), and those that % occur sequentially in time. For concurrent vectors, the order is not % important, and if there were a number of networks running in parallel, % you could present one input vector to each of the networks. For % sequential vectors, the order in which the vectors appear is important.
p = con2seq(y); Define ADALINE neural network % The resulting network will predict the next value of the target signal % using delayed values of the target. inputDelays = 1:5; % delayed inputs to be used learning_rate = 0.2; % learning rate % define ADALINE net = linearlayer(inputDelays,learning_rate); Adaptive learning of the ADALINE % Given an input sequence with N steps the network is updated as follows. % Each step in the sequence of inputs is presented to the network one at % a time. The network's weight and bias values are updated after each step, Page 15 of 91 % before the next step in the sequence is presented.
Thus the network is % updated N times. The output signal and the error signal are returned, % along with new network.b{1} Weights and bias of the ADALINE after adaptation ans = 0.2520e-08 Plot results % transform result vectors Y = seq2con(Y); Y = Y{1}; E = seq2con(E); E = E{1}; % start a new figure figure; % first graph subplot(211) plot(t,y,'b', t,Y,'r--'); legend('Original','Prediction') grid on xlabel('Time [sec]'); ylabel('Target Signal'); ylim([-1.2]) % second graph subplot(212) plot(t,E,'g'); grid on Page 16 of 91 legend('Prediction error') xlabel('Time [sec]'); ylabel('Error'); ylim([-1.2]) Published with MATLAB® 7.14 Page 17 of 91 Solving XOR problem with a multilayer perceptron Neural Networks course (practical examples) © 2012 Primoz Potocnik PROBLEM DESCRIPTION: 4 clusters of data (A,B,C,D) are defined in a 2-dimensional input space. (A,C) and (B,D) clusters represent XOR classification problem. The task is to define a neural network for solving the XOR problem.
Contents ● Define 4 clusters of input data ● Define output coding for XOR problem ● Prepare inputs & outputs for network training ● Create and train a multilayer perceptron ● plot targets and network response to see how good the network learns the data ● Plot classification result for the complete input space Define 4 clusters of input data close all, clear all, clc, format compact % number of samples of each class K = 100; % define 4 clusters of input data q = .6; % offset of classes A = [rand(1,K)-q; rand(1,K)+q]; B = [rand(1,K)+q; rand(1,K)+q]; C = [rand(1,K)+q; rand(1,K)-q]; D = [rand(1,K)-q; rand(1,K)-q]; % plot clusters figure(1) plot(A(1,:),A(2,:),'k+') hold on grid on plot(B(1,:),B(2,:),'bd') plot(C(1,:),C(2,:),'k+') plot(D(1,:),D(2,:),'bd') % text labels for clusters text(.5-2*q,'Class B') Page 18 of 91 Define output coding for XOR problem % encode clusters a and c as one class, and b and d as another class a = -1; % a | b c = -1; % ------- b = 1; % d | c d = 1; % Prepare inputs & outputs for network training % define inputs (combine samples from all four classes) P = [A B C D]; % define targets T = [repmat(a,1,length(A)) repmat(b,1,length(B)). repmat(c,1,length(C)) repmat(d,1,length(D)) ]; % view inputs |outputs %[P' T'] Create and train a multilayer perceptron % create a neural network net = feedforwardnet([5 3]); % train net net.trainRatio = 1; % training set [%] net.valRatio = 0; % validation set [%] net.testRatio = 0; % test set [%] % train a neural network [net,tr,Y,E] = train(net,P,T); % show network view(net) Page 19 of 91 plot targets and network response to see how good the network learns the data figure(2) plot(T','linewidth',2) hold on plot(Y','r--') grid on legend('Targets','Network response','location','best') ylim([-1.25]) Plot classification result for the complete input space % generate a grid span = -1:.005:2; [P1,P2] = meshgrid(span,span); pp = [P1(:) P2(:)]'; % simulate neural network on a grid aa = net(pp); % translate output into [-1,1] %aa = -1 + 2*(aa>0); % plot classification regions figure(1) mesh(P1,P2,reshape(aa,length(span),length(span))-5); colormap cool Page 20 of 91 view(2) Published with MATLAB® 7.14 Page 21 of 91 Classification of a 4-class problem with a multilayer perceptron Neural Networks course (practical examples) © 2012 Primoz Potocnik PROBLEM DESCRIPTION: 4 clusters of data (A,B,C,D) are defined in a 2-dimensional input space. The task is to define a neural network for classification of arbitrary point in the 2-dimensional space into one of the classes (A,B,C,D).
