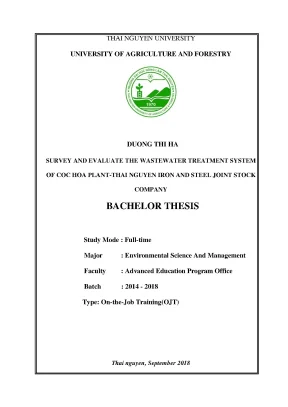

THAI NGUYEN UNIVERSITY UNIVERSITY OF AGRICULTURE AND FORESTRY DUONG THI HA SURVEY AND EVALUATE THE WASTEWATER TREATMENT SYSTEM OF COC HOA PLANT-THAI NGUYEN IRON AND STEEL JOINT STOCK COMPANY BACHELOR THESIS Study Mode : Full-time Major : Environmental Science And Management Faculty : Advanced Education Program Office Batch : 2014 - 2018 Type: On-the-Job Training(OJT) Thai nguyen, September 2018 h Thai Nguyen University of Agriculture and Forestry Degree Program Bachelor of environmental Science and Management Student ID DTN1454290011 Survey and evaluate the wastewater treatment system of Coc Thesis Title hoa plant -Thai Nguyen Iron and Steel Joint Stock Company. Phan Dinh Binh Supervisor’s signature Abstract: Coc Hoa Factory is a member of Thai Nguyen Iron and Steel Joint Stock Company, an important chain of iron and steel production line located in the industrial production area of the company. The main products of the factory are coke - the main raw material in the iron-steel production cycle. But coke production is one of the major environmental pollutants of the entire iron and steel production process.
Assessment and select the wastewater treatment technology for the production processes being applied nowadays which is a very necessary issue for the plant.This study reviews waste water characterization of iron and steel industry and treatment procedures involved in these industries. The production of iron from its ores involves powerful reduction reaction in blast furnaces. Cooling waters are inevitably contaminated with products especially ammonia and cyanide. Production of coke from coal in coking plants also requires water cooling and the use of water in by-products separation.
Contamination of waste streams includes gasification products such as benzene, i h naphthalene, anthracene, cyanide, ammonia phenols, cresols together with an array of more complex organic compounds known collectively as Poly Aromatic Hydrocarbons (PAH). Keywords Wastewater treatment system, cochoa plant, coke production Number of papers 56 Date of submission 15/09/2018 ii h ACKNOWLEDGEMENT This thesis has been greatly conducted from the support as well as assistance of many people whom I would sincerely like to give deep thanks and acknowledgements here. To achieve results like today, I would like to express sincere gratitude to School Leadership and teachers at Training and Development International Center - Thai Nguyen University of Agriculture and Forestry imparted for me the knowledge as well as facilitating learning and help me during the learning process in schools. In particular we would like to express deep gratitude to Assoc.
Phan Dinh Binh - who has oriented research, guidance, help and create the best conditions for me to complete this research. I would like to sincerely thanks Dr. Dao Dai Duong - Head of technical technology and the uncle, aunt, brother, sister officer of Coc Hoa plant - Thai Nguyen Iron and Steel Joint Stock Company for providing me very useful documents and knowledge about wastewater treatment system of plant, wholeheartedly induct guide and help me throughout the process internship. I would like to sincerely thank ! Thai Nguyen, September 2018 iii h TABLE OF CONTENT ACKNOWLEDGEMENT.
iii TABLE OF CONTENT .iv LIST OF FIGURES .vi LIST OF TABLES. Contents of work. Profile of the cooperating agency. Error! Bookmark not defined.
The basics of the environment. Error! Bookmark not defined. Error! Bookmark not defined.Situation of water pollution. Status of water pollution in the world .Situation of water pollution in Vietnam .Situation of water pollution in Thai Nguyen province .Situation of coke production environment in the world and Vietnam .15 iv h CHAPTER III.
STATUS OF THE CONSIDERED ISSUE AT THE TRAINING AGENCY………………………………………. Overview of factory. Personnel diagram of Coc hoa Factory thai nguyen. Production capacity of the plant:.
Process technology of the plant. Satus of water environment – Wastewater treatment technology of plant. Satus of water environment .Wastewater treatment measures. Evaluation of wastewater treatment of Coc hoa Factory.
Some methods sampling and Determination factor in steel industry. DISCUSSION AND LESSON LEARNDED .Restriction when operating the wastewater treatment system. Solutions to problems occurring during the operation of the system. Suggested measures to minimize pollution to the plant.41 v h LIST OF FIGURES Figure 1 : Map about water reserves in the world.12 Figure 2: Personnel diagram of CocHoa factory Thai Nguyen……………………….19 Figure 3:Diagram of production technology of coke factory.20 Figure 4:Diagram of wastewater treatment technology.26 Figure 5: The pH in wastewater before and after treatment is compared with QCVN.
32 Figure 6: The BOD and COD concentration in wastewater before and after treatment is compared with QCVN .33 Figure 7:The phenol concentration in wastewater before and after treatment is compared with QCVN .33 Figure 8:The concentration of TSS in wastewater before and after treatment is compared with QCVN .34 vi h LIST OF TABLES Table 1: C values of pollution factors in wastewater from steel industry, which are the basis for calculating maximum permissible value .9 Table 2: Methods for sampling and determination of factors in wastewater from steel industry .29 Table 3: Analysis results of wastewater after the process of wastewater treatment .Rationale In recent years, the global environment has changed in a negative way, seriously affecting the socio-economic development of the country, causing ecological imbalance on the earth. Sustainable development is therefore of particular concern in many countries and organizations around the world. Environmental protection has become a global issue. According to the United Nations (UNEP), the world's air pollution and water pollution is constantly increasing, environmental protection is a national policy and is becoming an important issue, in the socio-economic development strategy.
Nearly 80 countries, accounting for 40% of the world's population, have been in serious water shortages since the mid-1990s.1 billion people do not have safe water. Our country is in the process of speeding up the process of industrialization modernization with increasing speed. Export-processing zones shall be newly built and expanded to develop economic development. (Citation from:’’ The United Nations World Water Development Report 2015’’.) In the industries, iron and steel metallurgy industry is an important economic sector of our country, supplying raw materials for the country's construction, bridges of roads are increasingly expanded and enhanced.
In large part thanks to the steel industry day. Besides the strong development contributing greatly to the economic development but causing a considerable impact on the environment. 1 h Especially the water environment is increasingly seriously polluted from the sewage of the steel plant bad influence on the environment in general and the water environment in particular. In Vietnam, the lack of uniformity in management together with the rapid development of steel plants, metallurgy which have had negative impacts on the environment in the local and will need fees great for many years to deal with the consequences.
Thai Nguyen Iron and Steel Joint Stock Company was established in 1959 and underwent 50 years of construction and development. So far, the company's steel production is increasing and the scale of its production has been expanded and growing after being equitized on July 1, 2009. In parallel with that development, industrial production of the Company also polluted the environment, negatively affecting the surrounding environment, affecting the community. The environmental pollution caused by sewage is at an alarming rate.
From the urgent requirements set forth in environmental protection. Thai Nguyen Iron and Steel Factory has applied many measures to minimize and limit pollution in general and water pollution in particular. In order to assess the wastewater treatments systems for finding the best model which can applied at the plant. I conducted the research:“Survey and evaluate the wastewater treatment system of Coc hoa plant -Thai Nguyen Iron and Steel Joint Stock Company’’.
Specific Objectives - Assessing of the wastewater treatment status at the Coc hoa factory of Thai Nguyen Iron and Steel Joint Stock Company. - Suggested measures to reduce pollution, proposed new technologies to treat wastewater so that after treatment to achieve QCVN. - Learn about the wastewater treatment technology of the Coke Chemical Factory Thai Nguyen Iron and Steel Joint Stock Company is applying. - Enhance practical knowledge.
- Equip yourself with basic knowledge of environmental science and environmental management. - Accumulate experience for work after graduation. Contents of work - Support and operate the air compressor system to supply gas to the tank through the gas distribution system. - Help worker in the factory check the technical parameters (pH, COD, t0 .) and the working situation of the system.
- Sanitary clean environment around and the equipment. - Collect and summarize data on wastewater treatment system. - Fully participate in the sports activities of the factory. Profile of the cooperating agency Coc hoa Factory is a unit directly under the Thai Nguyen Iron and Steel Company, based in Cach Mang Thang Tam road – Cam Gia Ward – Thai Nguyen City – Thai Nguyen Province.
3 h Company Name: Coc Hoa Factory International transaction name: COCHEFA Factory manager: Mr. Dao Van Tien Address: Cam Gia Ward – Thai Nguyen City Phone: 0280 3834 795 Fax: 0280 3832 742 Tax code: 4600 100 155 004. My activities Month Activities Time - Study the safety law of the factory Week 1 (5/3 -11/3) - Get familiar with the work environment at the factory - Visiting around the factory area Week 2 st 1 (12/3-18/3) - Visiting each factory of plant Week 3 -Visiting the wastewater treatment system of the plant. (19/3-25/3) Week 4 - Learning about the production technology of the plant ( 26/3-31/3) - Technical inspection and parameter of pH, temperature, sedimentation, 2 hours once a day.
Record fully the data and work situation of the processing From 1/4 – system into the book. 30/4/2018 - Pump monitoring 4 h 2nd - Cleaning work area and tools - Learning about the waste water treatment system. Detailed understanding of each stage of the wastewater treatment system. - Cleaning up the environmental sanitation around the company.
- Participating in the factory's sporting activities From 1/5 – rd 3 30/5/2018 greeted the liberation day and the international workers' day. - Survey worker at the factory. - Translate documents into English - Collect full data on production technology and 4th From 1/6 - 30/6/2018 wastewater treatment system.Timeline I’m working at Coc Hoa factory 4 months From 1/3/2018 to 30/6/2018. The basics of the environment - The concept of environment: According to Clause 1, Article 3 of the Law on Protection of the Environment.
The environment in Vietnam is defined as follows: "The environment is a system of natural and man-made elements that have an impact on the survival and development of humans and organisms’’. - The concept of environmental pollution: the presence of deterioration of quality The environment is too restrictive, contrary to the purpose of using the environment, affecting human health and living. Environmental pollution, if exceeded, would result in poisoning and poisoning of organisms and humans. - Concept of water pollution: Water pollution occurs when harmful substances- often chemicals or microorganisms - contaminate a stream, river, lake, ocean, aquifer, or other body of water, degrading water quality and rendering it toxic to humans or the environment.
- Signs of contaminated water sources: + Floating surface and sedimentation at the bottom. + Change in physical properties (visibility, color, taste. + Change in chemical composition (reaction, amount of organic matter, mineral and toxic substances). +The amount of dissolved oxygen decreases.
+Changes in the shape and number of germs that cause and transmit the disease. 6 h - Concept of water resources: Water resources are water sources that people use or can use for different purposes. Water is used in agriculture, industry, civil, recreational and environmental. Most of these activities require fresh water.
97% of the water on Earth is saline, while the remaining 3% are freshwater, but close to two thirds of this water exists in the form of glaciers and polar ice caps. The rest of the ice is found mainly in the form of groundwater, and only a small percentage exists on the ground and in the air.
