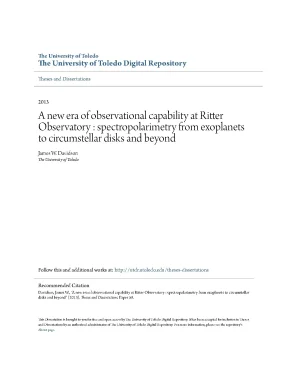

The University of Toledo The University of Toledo Digital Repository Theses and Dissertations 2013 A new era of observational capability at Ritter Observatory : spectropolarimetry from exoplanets to circumstellar disks and beyond James W. Davidson The University of Toledo Follow this and additional works at: http://utdr.edu/theses-dissertations Recommended Citation Davidson, James W., "A new era of observational capability at Ritter Observatory : spectropolarimetry from exoplanets to circumstellar disks and beyond" (2013). Theses and Dissertations. This Dissertation is brought to you for free and open access by The University of Toledo Digital Repository.
It has been accepted for inclusion in Theses and Dissertations by an authorized administrator of The University of Toledo Digital Repository. For more information, please see the repository's About page. A Dissertation entitled A New Era of Observational Capability at Ritter Observatory: Spectropolarimetry from Exoplanets to Circumstellar Disks and Beyond by James W. Submitted to the Graduate Faculty as partial fulfillment of the requirements for the Doctor of Philosophy Degree in Physics & Astronomy Dr.
Bjorkman, Committee Chair Dr. Collins, Committee Member Dr. Thomas Megeath, Committee Member Dr. Smith, Committee Member Dr.
Wisniewski, Committee Member Dr. Komuniecki, Dean College of Graduate Studies The University of Toledo May 2013 Copyright 2013, James W. This document is copyrighted material. Under copyright law, no parts of this document may be reproduced without the expressed permission of the author.
An Abstract of A New Era of Observational Capability at Ritter Observatory: Spectropolarimetry from Exoplanets to Circumstellar Disks and Beyond by James W. Submitted to the Graduate Faculty as partial fulfillment of the requirements for the Doctor of Philosophy Degree in Physics & Astronomy The University of Toledo May 2013 We undertook efforts to restore and relocate the University of Wisconsin’s Halfwave- Polarimeter (HPOL) spectropolarimeter to the University of Toledo’s Ritter Observa- tory. This process required fairly extensive work to the optical-mechanical alignment of the Ritter Observatory 1-meter telescope. Ultimately the restoration and reloca- tion efforts were successful, with first light at Ritter Observatory on March 11th, 2012.
Extensive observations of unpolarized standard stars were carried out in the first six months of observing time at Ritter Observatory. The results of this effort has shown the polarimetric stability in the observations is at the same level or better compared to almost 10 years of observations at Pine Bluff Observatory, after the upgrade to the detector. Aside from continued spectropolarimetric monitoring programs which were ini- tially focused on a selection of Be and Wolf-Rayet stars, we sought to investigate potential polarimetric variability in exoplanet systems. In particular we focused on the system HD189733, as there was previous observational work in the literature claiming both a detection and non-detection at different optical wavelengths.
The goal was to investigate this system with HPOL to provide simultaneous observations across the entire optical wavelength range to investigate the possibility of a wavelength dependent variable polarization with orbital phase. While the variability claimed in iii the literature is below the noise limits of our observations, an interesting and yet un- explained increase in the polarization level occurred in one of our observations. This higher than expected signal had vanished by the next observation, which was several nights later due to weather, and did not reappear in any of the observations there- after, implying such a higher than expected signal must be short lived, lasting less than a couple orbital periods. This increase is around an order of magnitude larger than the claimed detection in the literature from light scattering off the exoplanets atmosphere, and would seem to be caused by some other physical mechanism in the system.
Continued observations of HD189733 with HPOL in the next observing sea- son starting in July 2013 will help to identify if the increased polarization level is repeatable. iv To my family Acknowledgments I would like to thank my advisor, Karen Bjorkman, for all her assistance and support during this work; Jon Bjorkman for many great discussions and for all his guidance in collimating the Ritter Observatory 1-meter telescope; and my committee members for all their help, particularly John Wisniewski. I would like to thank those involved in the HPOL efforts: From Denver University, Jennifer Hoffman and Jamie Lomax; From the University of Wisconsin at Madison, HPOL creator Ken Nordsieck, Brian Babler for help with the calibration, Marilyn Meade for help with data reduction, Rick Williams for technical help with HPOL, and Richard Bonomo for help restoring the HPOL control computer; And from the University of Toledo, Rick Irving for computer assistance, Ashok Bhandary for helping testing HPOL in the lab, Mike Brown for help getting HPOL operating on the Ritter 1-meter telescope, Adolf Witt for all his help in regards to Ritter Observatory, and Scott Lee for generously loaning the optical equipment used to collimate the telescope. I would like to thank my office mates for the better part of six years, Charles Poteet and Blagoy Rangelov, for many great conversations.
I would also like to thank my family and friends for all their support over the years, in particular my soon to be wife, Kära Lindelof, who moved to Toledo with me and has been a tremendous source of support. Thank you, and I love you all. This research has made use of the SIMBAD database, operated at CDS, Stras- bourg, France. This work has been partially funded by a Small Research Grant from the AAS, and by the Scott E.
