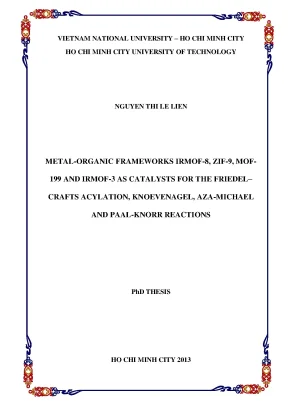

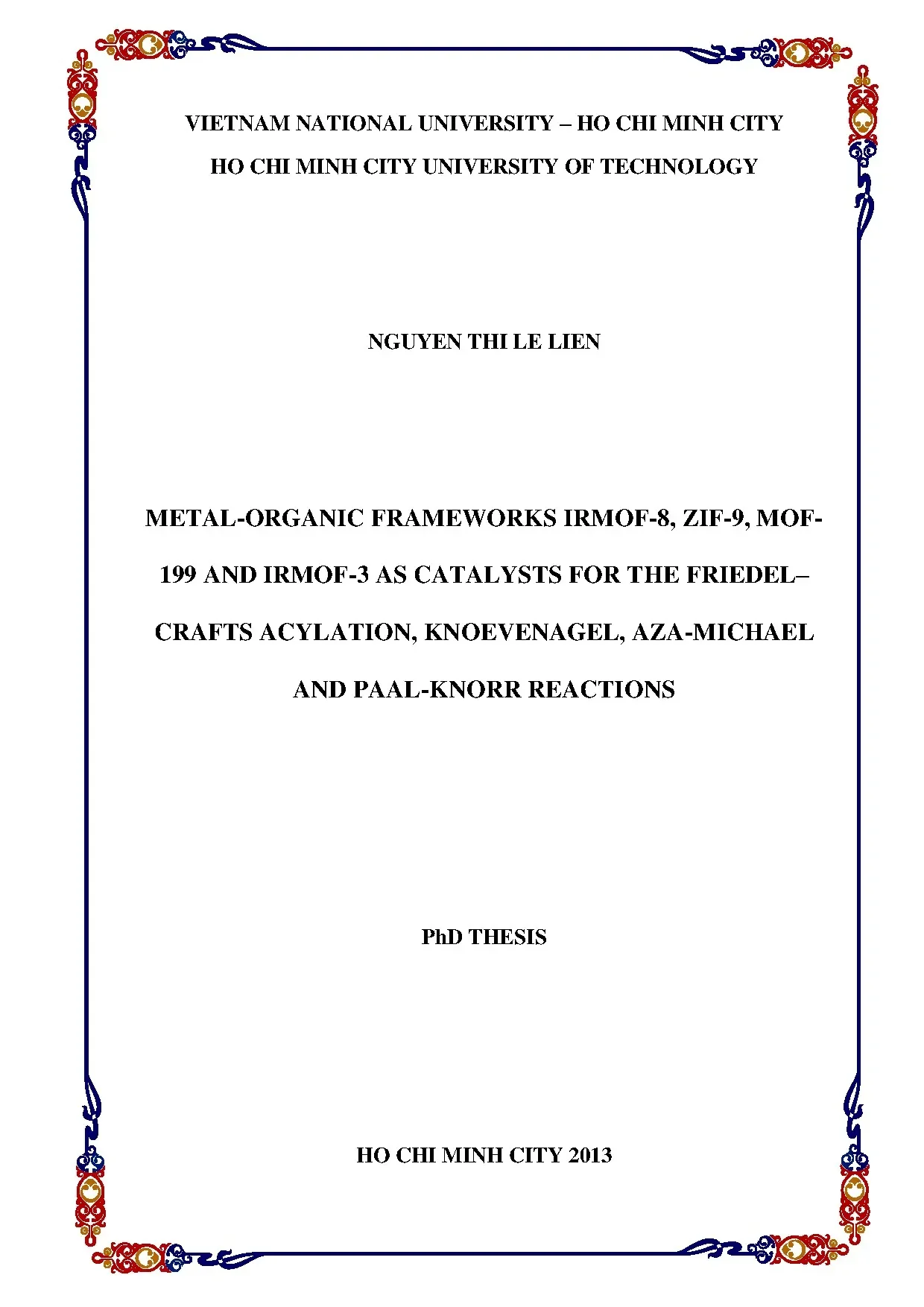

i VIETNAM NATIONAL UNIVERSITY — HO CHI MINH CITY ‘ HO CHI MINH CITY UNIVERSITY OF TECHNOLOGY Ss ZIOB eo NGUYEN THI LE LIEN METAL-ORGANIC FRAMEWORKS IRMOE-8, ZIF-9, MOF- 199 AND IRMOF-3 AS CATALYSTS FOR THE FRIEDEL-— CRAFTS ACYLATION, KNOEVENAGEL, AZA-MICHAEL AND PAAL-KNORR REACTIONS PhD THESIS HO CHI MINH CITY 2013 ) L SOc 22 SCOP ee VIETNAM NATIONAL UNIVERSITY — HO CHI MINH CITY HO CHI MINH CITY UNIVERSITY OF TECHNOLOGY NGUYEN THI LE LIEN METAL-ORGANIC FRAMEWORKS IRMOE-8, ZIF-9, MOF- 199 AND IRMOF-3 AS CATALYSTS FOR THE FRIEDEL-— CRAFTS ACYLATION, KNOEVENAGEL, AZA-MICHAEL AND PAAL-KNORR REACTIONS Major: Organic chemical Technology Major code: 62527505 Supervisor : Assoc. Phan Thanh Son Nam Independent examiner 1: Assoc. Vu Anh Tuan Independent examiner 2: Assoc. Pham Thanh Huyen Examiner 1: Assoc.
Tran Dai Lam Examiner 2: Dr. Nguyen Quoc Chinh Examiner 3: Assoc. Pham Thanh Quan DECLARATION OE ORIGINALITY I hereby declare that this is my own research study. The research results and conclusions in this dissertation are true, and are not copied from any other resources.
The literature references have been quoted with clear citation as requested Dissertation Author THESIS SUMMARY The thesis consists of four chapters, including the literature reviews in chapter one, which provide brief introduction of metal organic framework materials, their properties, and their application. Besides, in chapter one, we will collect and summary information from international researcher’s publication on the field of MOF application in organic synthesis reaction as heterogeneous catalyst, which are directly related to our study. The main part of this thesis is written in Chapter 2 and Chapter 3. In Chapter 2, the materials, equipment and methodology which are used in our study are presented.
Our experiment consisted of two parts: (1) Synthesize and characterization of MOFs, and (2) Study the ability of these materials to catalyze organic reactions. Chapter 3 will present the experimental results and discussions. Chapter 4 is to summarize our significant results with conclusion. Four different MOF materials such as IRMOF-8, ZIF-9, MOF-199, IRMOF-3 are synthesized by solvothermal methods in the existent laboratory conditions.
The yielded materials were analyzed and characterized by modern analytical methods to confirm their structure and properties. The analysis techniques included X-ray powder diffraction, SEM micrography and TEM micrography to confirm the crystalline and porous structure of the synthesized catalyst materials. Metal concentration in the solid MOFs was determined by AAS techniques, and their functional groups were characterized by FT-IR spectrometer. The surface areas of MOFs were determined by Nitrogen physisorption measurements, given the high surface area materials of the four MOFs synthesized in this study.
The four MOFs: IRMOF-8, ZIF-9, MOF-199, IRMOF-3 were applied as catalysts in the four organic reactions: Friedel- Craft acylation of toluene with benzoyl chloride, Knoevenagel reaction between benzaldehyde and malononitrile, aza-Michael reaction of benzylamine with ethyl acrylate and the Paal-Knorr reaction of benzyl amine with 2,5-hexanedione, respectively. Different reaction conditions were ii investigated included the effect of catalyst concentration, reagent ratio, solvents, and the effect of substituents of the reagents on the efficiency of the MOF based catalysts. The results show that catalytic properties of the MOFs were good as compared to other solid catalysts. The most important experiment was to investigate the leaching of active site of the solid catalysts into the reaction solution.
Experimental results show that there was no any leaching or homogenous catalytic occurred in the four examined reaction. Lastly, the feasibility for the catalyst recyclability was tested and results show that the four catalysts were able to be reused up to five times without any significant degradation. Based on the results obtained in this study, it can be concluded that MOF materials can be applied as catalysts in various reactions with advantages such as high efficiency, environment-friendly, and recyclability. 11 ABSTRACT Highly porous metal-organic framework such as IRMOF-8, ZIF-9, MOF-199 and IRMOF-3 were synthesized by a solvothermal method, and used as an efficient heterogeneous catalyst for the Friedel-Crafts acylation reaction, Knoevenagel reaction, Aza Micheal reaction and Pal Knorr reaction.
The solid catalyst was characterized by X-ray powder diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), thermogravimetric analysis (TGA), Fourier transform infrared spectroscopy (FT-IR), atomic absorption spectrophotometry (AAS), and nitrogen physisorption measurements. High conversions were achieved in the presence of a catalytic amount of the MOFs without the need for an inert atmosphere. The solid catalyst could be facilely separated from the reaction mixture by simple centrifugation, and could be reused without a significant degradation in catalytic activity. No contribution from homogeneous catalysis of active acid species leaching into the reaction solution was detected.
