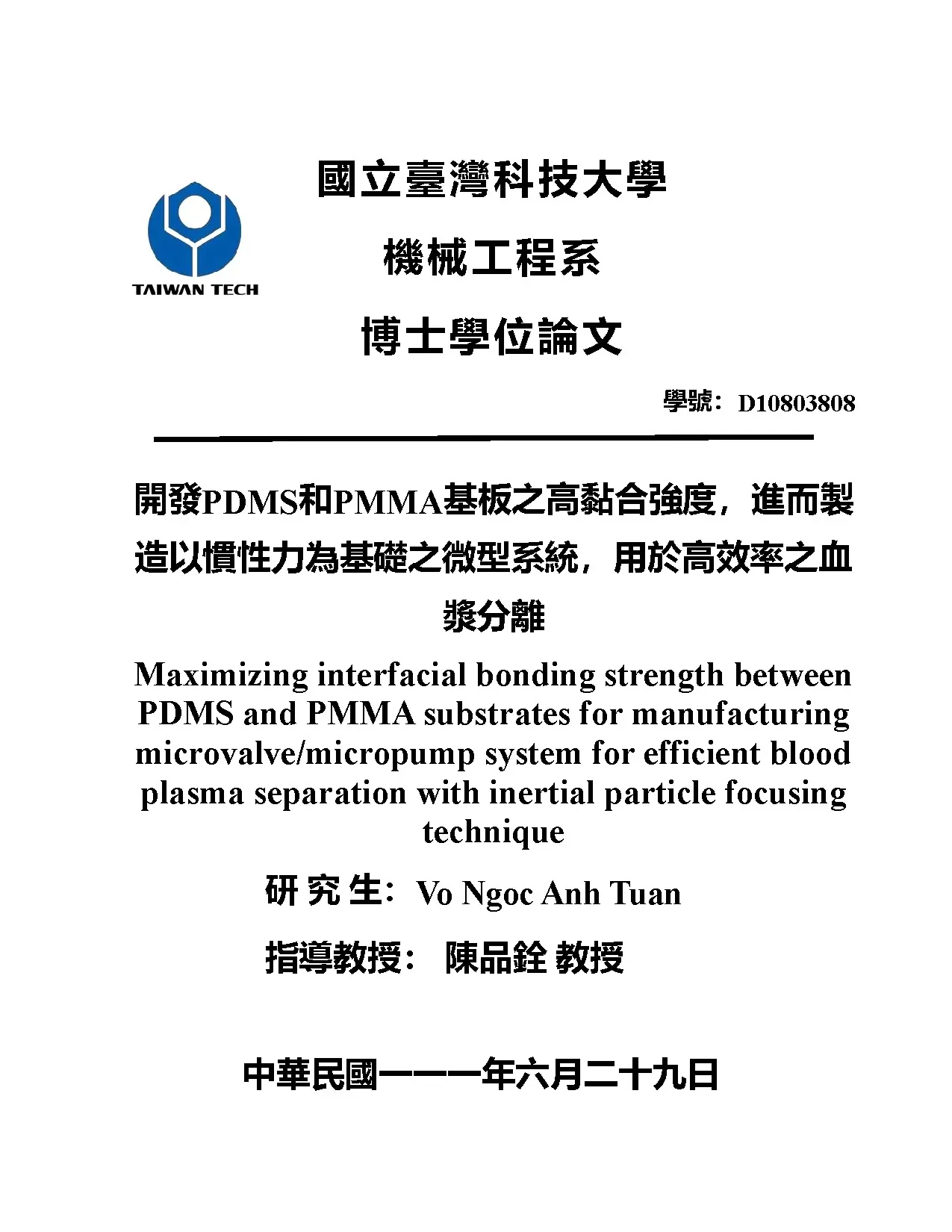

國立臺灣科技大學 機械工程系 博士學位論文 學號：D10803808 開發PDMS和PMMA基板之高黏合強度，進而製 造以慣性力為基礎之微型系統，用於高效率之血 漿分離 Maximizing interfacial bonding strength between PDMS and PMMA substrates for manufacturing microvalve/micropump system for efficient blood plasma separation with inertial particle focusing technique 研 究 生：Vo Ngoc Anh Tuan 指導教授： 陳品銓 教授 中華民國一一一年六月二十九日 Abstract Polydimethylsiloxane (PDMS) and polymethylmethacrylate (PMMA) are widely used in microfluidics, due to their excellent biocompatibility, high optical transparency, and ease of fabrication. However, the existing bonding methods could not generate sufficient bonding strength and limit such applications. This thesis outlines a systematic approach to maximize the interfacial bonding strength between PDMS to PMMA. Fabrication parameters were studied by measuring bonding strength (i., burst test pressure) based on the Taguchi method.
Under optimal bonding conditions, the microchannel assembly endured air pressure exceeding 770 kPa, liquid pressure exceeding 622 kPa, and tensile test exceeding 3000 kPa. Bonding strength was sufficient to resist the entry of liquid at a rate of 6800 times greater than the microchannel volume per minute. The ability to withstand such extremely high pressure without damage to the microdevices is an indication that interfacial bonding was indeed permanent. Then, the proposed manufacturing method was also used to fabricate microfluidic devices capable of withstanding extremely high liquid pressure of 402 kPa, high flow rates exceeding 120 mL/min, and dense microchannels with gap of only 30 µm.
This proposed bonding process was used to fabricate a functional valve system of high-density configuration, which i can be potentially used in microfluidics-based assays requiring high accuracy, rapid response, and the facile management of liquid transportation. Moreover, we successfully developed a novel microfluidic device for separation blood plasma from human blood without any external valves or pumps. The concept is based on using pneumatic peristaltic micropump (PPMs) integrated with a trapezoidal cross-section for ultra-fast blood plasma separation. First, we proposed a fabrication process of PPM with high pumping rate by combining rigidly of PMMA and elasticity of PDMS.
Following the procedure to achieve excellent bonding strength of PDMS/PMMA, the PPMs could be operated under high pressure. Then, the dynamic deflection test of PDMS membrane actuator under high pulsation frequency was performed. We proved that the PPMs have excellent actuator diaphragm dynamic behavior without any mechanical fatigue or dead volume, achieving the highest pumping rate of 3,500 µL/min. Then the micropump was integrated with a spiral microchannel with trapezoidal cross-section area and used to rapidly extract plasma from human blood within 3 minutes and with a small blood volume of 200μL, with the efficient separation up to 97%.
