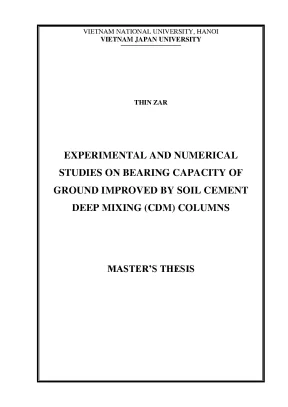

VIETNAM NATIONAL UNIVERSITY, HANOI VIETNAM JAPAN UNIVERSITY THIN ZAR EXPERIMENTAL AND NUMERICAL STUDIES ON BEARING CAPACITY OF GROUND IMPROVED BY SOIL CEMENT DEEP MIXING (CDM) COLUMNS MASTER’S THESIS VIETNAM NATIONAL UNIVERSITY, HANOI VIETNAM JAPAN UNIVERSITY THIN ZAR EXPERIMENTAL AND NUMERICAL STUDIES ON BEARING CAPACITY OF GROUND IMPROVED BY SOIL CEMENT DEEP MIXING (CDM) COLUMNS MAJOR: CIVIL ENGINEERING CODE: 8900201.04 QTD RESEARCH SUPERVISOR: Dr. NGUYEN TIEN DUNG Hanoi, 2023 ABSTRACT The load transfer layer is often designed and constructed on top of the Cement Deep Mixing (CDM) columns. In the literature, there are a few analytical methods to evaluate stress induced on the CDM column heads, and most of them involve the use of geosynthetics embedded layers, except ALiCC method, that takes into account the effect of Shallow Mixing (SM) layer. However, this method still has some limitations in actual designs.
Point Foundation (PF) method is CDM-like method, but it has more advantages than CDM method. Although there are some initial studies on the PF method, the existing studies did not fully analyze the behavior of soil and PF columns (using a true 3D model) and did not analyze stress induced in PF columns under shallow foundations. This study focuses on two key objectives: (1) the influence of thickness and stiffness of the Shallow Mixing (SM) layer on stress induced along the column and in soil and settlement of the improved ground under 1D conditions by using numerical analysis (PLAXIS 2D) and analytical analysis; and (2) the behavior of load-settlement curves of shallow footings on PF and CDM groups of similar configurations as well as stress induced in the columns by using numerical analyses (PLAXIS 3D) and field experiments. Analysis results for the first objective indicate that, as expected, when the thickness or stiffness of the SM layer increases, the settlement of the ground decreases and the stress induced on the column head increases.
An important finding from this study is that the maximum stress induced in the CDM column is typically not on the head of the columns but at the middle depths, where soil layers are softer than the SM layer and the bearing layer at the column toes. Analysis results for the second objective indicate that when the length of the PF column head is not long enough, the effectiveness of PF columns compared with CDM columns (having the same stiffness and diameter) is not significant. The stiffness of the columns and of the SM layer influence the load-settlement curves significantly. A key finding is that the maximum stress induced in the PF column is typically near the bottom of the PF cone section.
This must be aware in practical design, as the column may be locally failed at this section due to large concentrated stress. ACKNOWLEDGEMENTS First of all, I am very grateful to my supervisor, Dr. Nguyen Tien Dung (MCE coordinator), who provided much advice for the success of this study as well as valuable experience for my career. Although he was very busy, he spent a lot of time explaining to me the key issues in geotechnical engineering and foundation engineering.
