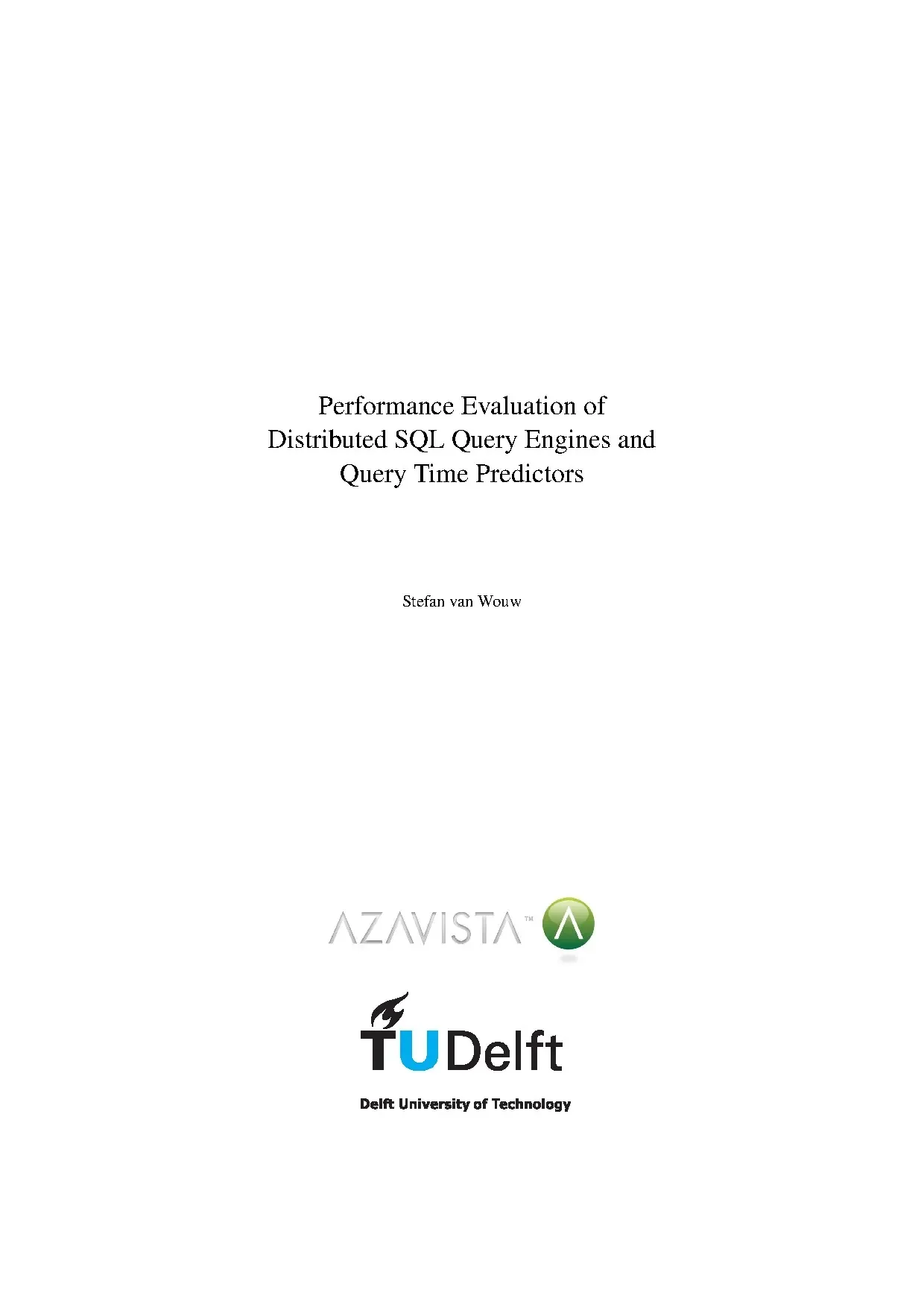

Performance Evaluation of Distributed SQL Query Engines and Query Time Predictors Stefan van Wouw “Work expands so as to fill the time available for its completion.” – Cyril Northcote Parkinson Performance Evaluation of Distributed SQL Query Engines and Query Time Predictors Master’s Thesis in Computer Science Parallel and Distributed Systems Group Faculty of Electrical Engineering, Mathematics, and Computer Science Delft University of Technology Stefan van Wouw 10th October 2014 Author Stefan van Wouw Title Performance Evaluation of Distributed SQL Query Engines and Query Time Predictors MSc presentation 29th October 2014 Graduation Committee Prof. Epema (chair) Delft University of Technology Dr. Iosup Delft University of Technology Dr. Hidders Delft University of Technology Dr.
Viña Rebolledo Azavista, Amsterdam Abstract With the decrease in cost of storage and computation of public clouds, even small and medium enterprises (SMEs) are able to process large amounts of data. This causes businesses to increase the amounts of data they collect, to sizes that are difficult for traditional database management systems to handle. Distributed SQL Query Engines (DSQEs), which can easily handle these kind of data sizes, are therefore increasingly used in a variety of domains. Especially users in small companies with little expertise may face the challenge of selecting an appropri- ate engine for their specific applications.
A second problem lies with the variable performance of DSQEs. While all of the state-of-the-art DSQEs claim to have very fast response times, none of them has performance guarantees. This is a serious problem, because companies that use these systems as part of their business do need to provide these guarantees to their customers as stated in their Service Level Agreement (SLA). Although both industry and academia are attempting to come up with high level benchmarks, the performance of DSQEs has never been explored or compared in- depth.
We propose an empirical method for evaluating the performance of DSQEs with representative metrics, datasets, and system configurations. We implement a micro-benchmarking suite of three classes of SQL queries for both a synthetic and a real world dataset and we report response time, resource utilization, and scalability. We use our micro-benchmarking suite to analyze and compare three state-of-the-art engines, viz. Shark, Impala, and Hive.
We gain valuable insights for each engine and we present a comprehensive comparison of these DSQEs. We find that different query engines have widely varying performance: Hive is always being outperformed by the other engines, but whether Impala or Shark is the best performer highly depends on the query type. In addition to the performance evaluation of DSQEs, we evaluate three query time predictors of which two are using machine learning, viz. multiple linear re- gression and support vector regression.
These query time predictors can be used as input for scheduling policies in DSQEs. The scheduling policies can then change query execution order based on the predictions (e., give precedence to queries that take less time to complete). We find that both machine learning based predict- ors have acceptable performance, while a baseline naive predictor is more than two times less accurate on average. iv Preface Ever since I started studying Computer Science I have been fascinated about the ways tasks can be distributed over multiple computers and be executed in paral- lel.
Cloud Computing and Big Data Analytics appealed to me for this very reason. This made me decide to conduct my thesis project at Azavista, a small start-up company based in Amsterdam specialised in providing itinerary planning tools for the meeting and event industry. At Azavista there is a particular interest in provid- ing answers to analytical questions to customers in near real-time. This thesis is the result of the efforts to realise this goal.
During the past year I have learned a lot in the field of Cloud Computing, Big Data Analytics, and (Computer) Science in general. I would like to thank my supervisors Prof.J Epema and Dr. Iosup for their guidance and encouragement throughout the project. Me being a perfectionist, it was very helpful to know when I was on the right track.
I also want to thank my colleague and mentor Dr. Viña Rebolledo for his many insights and feedback during the thesis project. I am very grateful both him and my friend Jan Zahálka helped me understand machine learning, which was of great importance for the second part of my thesis. I want to thank my company supervisors Robert de Geus and JP van der Kuijl for giving me the freedom to experiment and providing me the financial support for running experiments on Amazon EC2.
Furthermore I want to also thank my other colleagues at Azavista for the great time and company, and especially Mervin Graves for his technical support. I want to thank Sietse Au, Marcin Biczak, Mihai Capotǎ, Bogdan Ghiţ, Yong Guo, and other members of the Parallel and Distributed Systems Group for sharing ideas. Last but not least, I want to also thank my family and friends for providing great moral support, especially during the times progress was slow. Stefan van Wouw Delft, The Netherlands 10th October 2014 v vi Contents Preface v 1 Introduction 1 1.3 Thesis Outline and Contributions.
3 2 Background and Related Work 5 2.2 State-of-the-Art Distributed SQL Query Engines .3 Related Distributed SQL Query Engine Performance Studies .4 Machine Learning Algorithms .5 Principal Component Analysis. 21 3 Performance Evaluation of Distributed SQL Query Engines 23 3.1 Query Engine Selection .2 Performance Aspects and Metrics .3 Resource Utilization over Time. 36 4 Performance Evaluation of Query Time Predictors 39 4.2 Perkin: Scheduler Design .1 Use Case Scenario. 51 5 Conclusion and Future Work 53 5.
54 A Detailed Distributed SQL Query Engine Performance Metrics 61 B Detailed Distributed SQL Query Engine Resource Utilization 65 C Cost-based Analytical Modeling Approach to Prediction 69 D Evaluation Procedure Examples 73 viii Chapter 1 Introduction With the decrease in cost of storage and computation of public clouds, even small and medium enterprises (SMEs) are able to process large amounts of data. This causes businesses to increase the amounts of data they collect, to sizes that are difficult for traditional database management systems to handle. Exactly this chal- lenge was also encountered at Azavista, the company this thesis was conducted at. In order to assist customers in planning itineraries using its software for event and group travel planning, Azavista processes multi-terabyte datasets every day.
Traditional database management systems that were previously used by this SME simply did not scale along with the size of the data to be processed. The general phenomenon of exponential data growth has led to Hadoop-oriented Big Data Processing Platforms that can handle multiple terabytes to even petabytes with ease. Among these platforms are stream processing systems such as S4 [44], Storm [22], and Spark Streaming [64]; general purpose batch processing systems like Hadoop MapReduce [6] and Haloop [25]; and distributed SQL query engines (DSQEs) such as Hive [53], Impala [15], Shark [59], and more recently, Presto [19], Drill [35], and Hive-on-Tez [7]. Batch processing platforms are able to process enormous amounts of data (tera- bytes and up) but have relatively long run times (hours, days, or more).
Stream processing systems, on the other hand, have immediate results when processing a data stream, but can only perform a subset of algorithms due to not all data be- ing available at any point in time. Distributed SQL Query Engines are generally built on top of (a combination of) stream and batch processing systems, but they appear to the user as if they were traditional relational databases. This allows the user to query structured data using an SQL dialect, while at the same time having much higher scalability than traditional databases. Besides these different systems, hybrids also do exist in form of so called lambda architectures [17], where data is both processed by a batch processing system and by a stream processor.
This allows the stream processing to get fast but approximate results, while in the back the batch processing system slowly computes the results accurately. In this work we focus on the DSQEs and their internals, since although authors 1 claim them to be fast and scalable, none of them provides deadline guarantees for queries with deadlines. In addition, no in-depth comparisons between these systems are available.1 Problem Statement Selecting the most suitable of all available DSQEs for a particular SME is a big challenge, because SMEs are not likely to have the expertise and the resources available to perform an in-depth study. Although performance studies do exist for Distributed SQL Query Engines [4, 16, 33, 34, 47, 59], many of them only use synthetic workloads or very high-level comparisons that are only based on query response time.
A second problem lies with the variable performance of DSQEs. While all of the state-of-the-art DSQEs claim to have very fast response times (seconds instead of minutes), none of them has performance guarantees. This is a serious prob- lem, because companies that use these systems as part of their business do need to provide these guarantees to their customers as stated in their Service Level Agree- ment (SLA). There are many scenarios where multiple tenants1 are using the same data cluster and resources need to be shared (e.
In this case, queries might take much longer to complete than in a single-tenant environment, possibly violating SLAs signed with the end-customer. Related work provides a solution to this problem in form of BlinkDB [24]. This DSQE component for Shark does provide bounded query response times, but at the cost of less accurate results. However, one downside of this component is that it is very query engine dependent, as it uses a cost-based analytical heuristic to predict the execution time of different parts of a query.
In this thesis we try to address the lack of in-depth performance evaluation of the current state-of-the-art DSQEs by answering the following research question: RQ1 What is the performance of state-of-the-art Distributed SQL Query Engines in a single-tenant environment? After answering this question we evaluate an alternative to BlinkDB’s way of predicting query time by answering the following research question: RQ2 What is the performance of query time predictors that utilize machine learn- ing techniques? Query time predictors are able to predict both the query execution time and query response time. The query execution time is the time a query is actively being processed, whereas the query response time also takes the queue wait time 1 A tenant is an actor of a distributed system that represents a group of end-users. For example, a third party system that issues to analyze some data periodically, in order to display it to all its users on a website. The predicted execution time can be used to change the query exe- cution order in the system as to minimize response time.
We are particularly inter- ested in applying machine learning techniques, because it has been shown to yield promising results in this field [60]. In addition, machine learning algorithms do not require in-depth knowledge of inner DSQE mechanics. Thus, machine learn- ing based query time predictors can easily be applied to any query engine, while BlinkDB is tied to many internals of Shark.2 Approach To answer the first research question (RQ1) we define a comprehensive perform- ance evaluation method to assess different aspects of query engines. We com- pare Hive, a somewhat older but still widely used query engine, with Impala and Shark, both state-of-the-art distributed query engines.
This method can be used to compare current and future query engines, despite not covering all the methodo- logical and practical aspects of a true benchmark. The method focuses on three performance aspects: processing power, resource utilization and scalability. With the results from this study, system developers and data analysts can make informed choices related to both cluster infrastructure and query tuning. In order to answer research question two (RQ2), we evaluate three query time predictor methods, namely Multiple Linear Regression (MLR), Support Vector Re- gression (SVR), and a base-line method Last2.
